Product Description
Motion Raceworks Single 12ORB Outlet Post Fuel Filter w/ Mount (10 Micron) 27-171
The integrated bracket system has a simple two bolt design that makes the filter mounting easy by bolting OR welding. The mounting bracket also allows you to unscrew the other side of the filter to service or replace the filter element without unbolting the bracket and fully removing the filter from the vehicle.
Note: 10-micron is the filtration size that most fuel injector manufacturers call for pre injectors.
Features:
- Single 12ORB Inlet
- Single 12ORB Outlet
- Integrated mounting bracket for low profile and easy mounting solution.
- Completely Made in the USA!
- Billet Construction
- Integrated
- True 10-Micron Microglass Element
- Supports fuel systems over 10gpm.
- Approved for use with Gasoline, Oxygenated, Ethanol and Alcohol Fuels.
- Hard Anodized
Need fitting for this filter? Fittings / Hoses - 269 Motorsports
*For Racing Use Only*

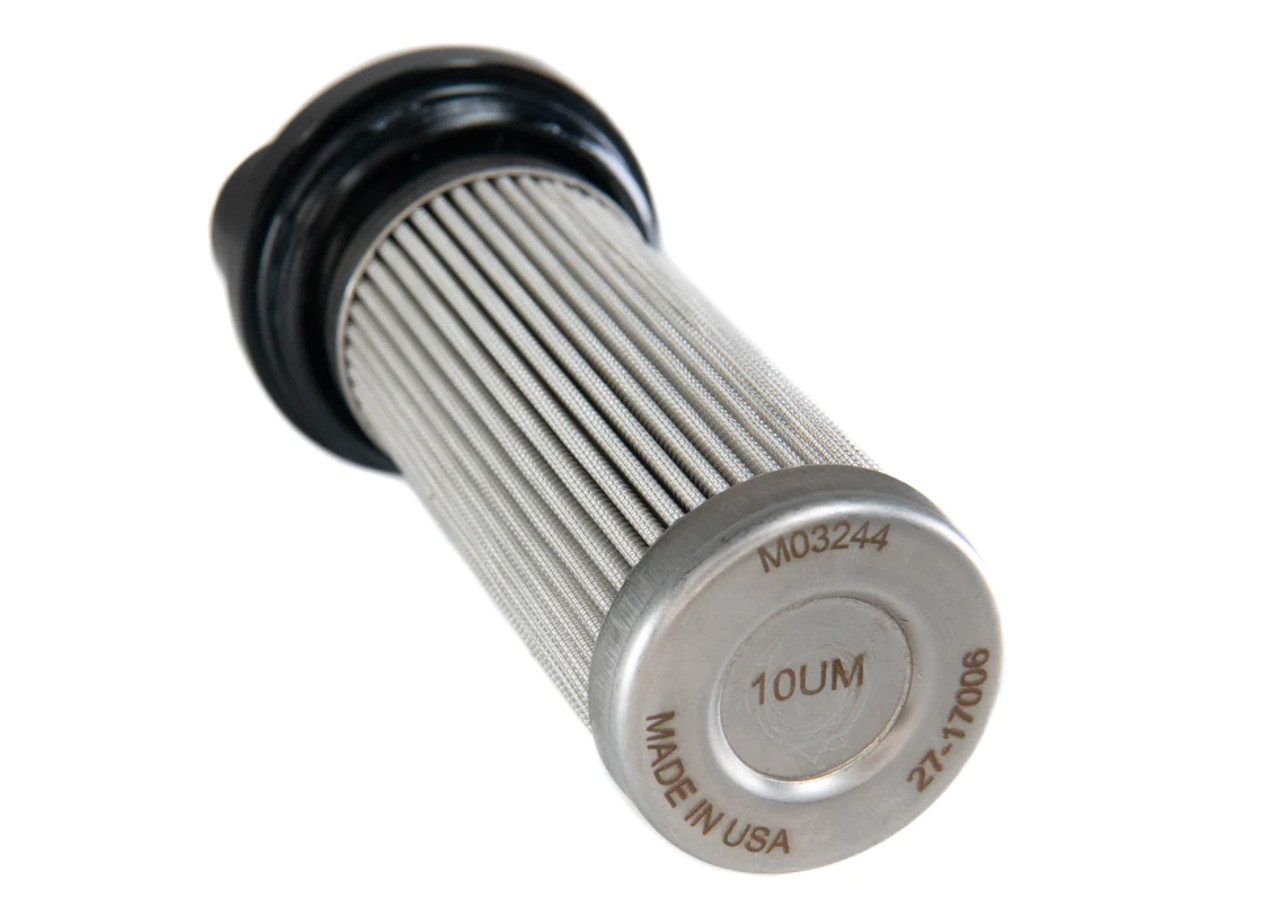

For 10-micron replacement element #27-17006: 10 Micron Replacement Fuel Filter Element for Filter PN 12-170 / 12-171 (269motorsports.com)
We recommend replacing the micro glass filter often to reduce the risk of blockage due to the size of the filter pores. These filters are not able to be reused or cleaned, unlike the stainless 100 micron. Failure to replace this may cause premature failure and extra stress on fuel pump.
