Product Description

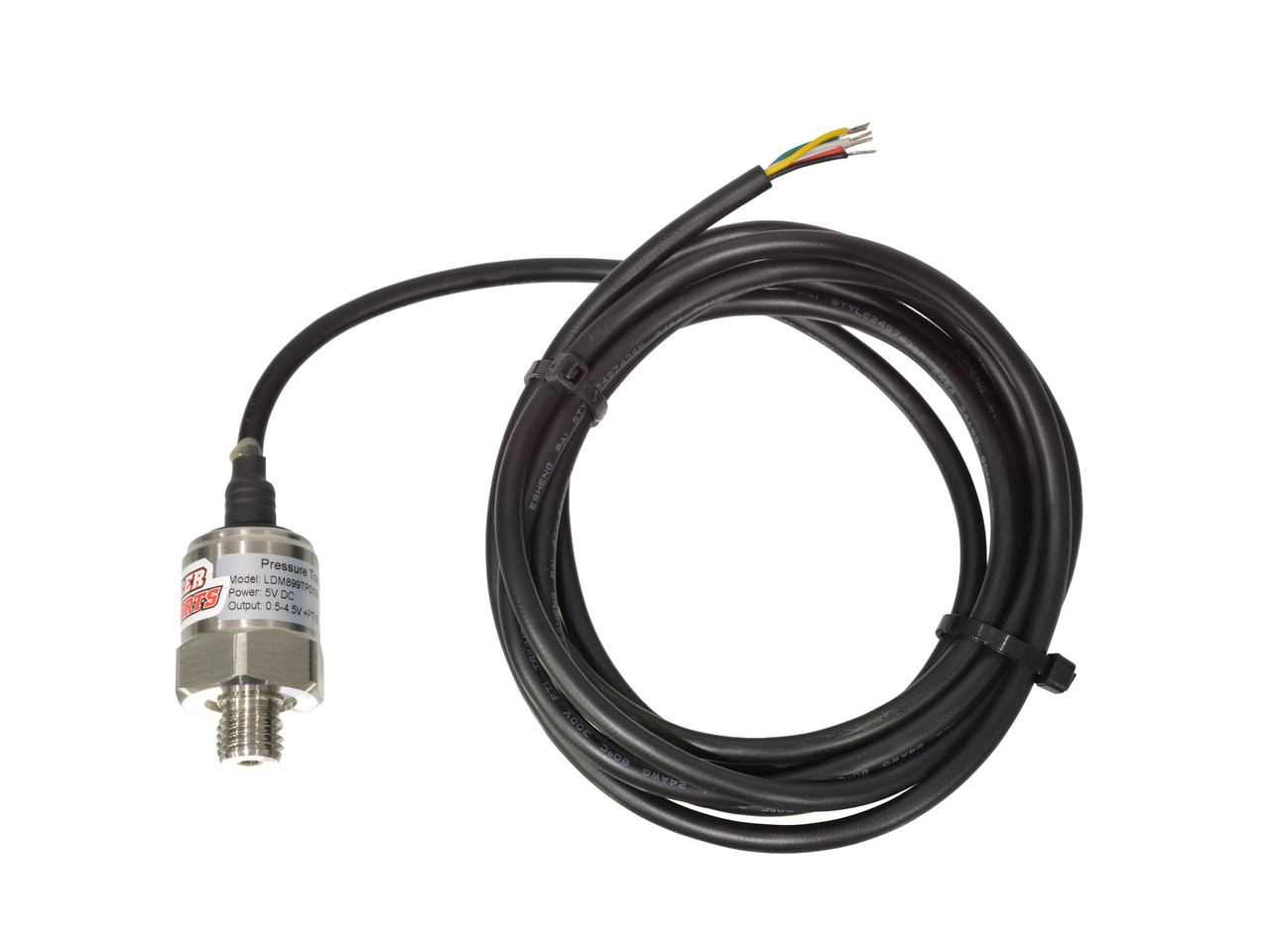

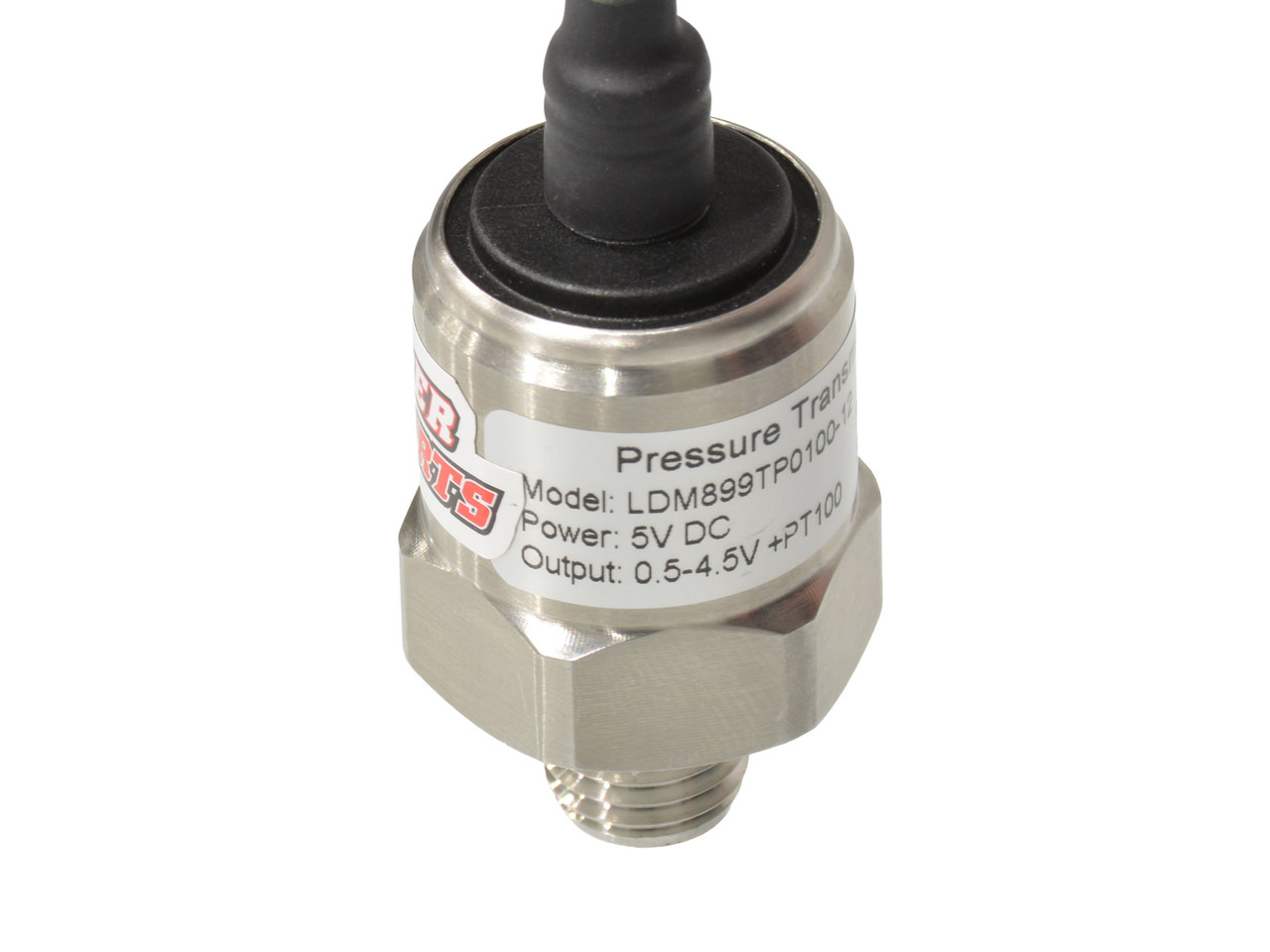

Lowdoller Motorsports M12 X 1.5 Coolant Pressure & Temperature Combo 100 PSI / 500°F PN: 899401
- Metric M12 X 1.5 with sealing ring.
- LDM899TP100 combo sensor.
- Perfect for coolant pressure/temp.
- outputs 0.5V to 4.5V signal for PSI.
- 0 to 100 psi and 0-500°F in one sensor!
- Same exact size as the standard 100 psi sensor.
- 8.5 feet flying lead. (Enough extra wire to cut and add connector wherever it is convenient.)
- Ultra Compact
- ASIC Chip
- Diffused silicon oil filled.
- Shock/vibration resistant.
- Corrosion resistant.
- 0.5% accuracy for full scale.
Wiring:
- RED = 5 Volt Supply
- BLACK = Negative Sensor Ground
- YELLOW = Pressure Signal
- White= Negative Sensor Ground
- Green= Signal Wire to ECU
| 100 PSI | |
| PSI: | Voltage: |
| 0.0 | 0.5 |
| 7.0 | 0.77 |
| 13.0 | 1.03 |
| 20.0 | 1.3 |
| 27.0 | 1.57 |
| 33.0 | 1.83 |
| 40.0 | 2.1 |
| 47.0 | 2.37 |
| 53.0 | 2.63 |
| 60.0 | 2.9 |
| 67.0 | 3.17 |
| 73.0 | 3.43 |
| 80.0 | 3.7 |
| 87.0 | 3.97 |
| 93.0 | 4.23 |
| 100.0 | 4.5 |
| Temp Sensor | |
| Degrees F: | Ohms.: |
| -40 | 84.27 |
| -4 | 89.54 |
| 32 | 100 |
| 68 | 107.79 |
| 104 | 115.54 |
| 140 | 123.24 |
| 176 | 130.9 |
| 212 | 138.51 |
| 248 | 146.07 |
| 284 | 153.585 |
| 320 | 161.05 |
| 356 | 168.48 |
| 392 | 175.86 |
| 428 | 183.19 |
| 464 | 190.47 |
| 500 | 197.71 |
