Product Description
Wheelie / Chassis Angle Sensor for Holley Terminator, Dominator, and HP – ACAS
Download ACAS Instructions by Clicking Here
This is a wheelie-management sensor for Holley ECUs only (universal versions coming soon).
This sensor communicates to the ECU via CAN Bus. It is ONLY COMPATIBLE WITH HOLLEY ECUS USING HOLLEY CANBUS 1MB PROTOCOLS.

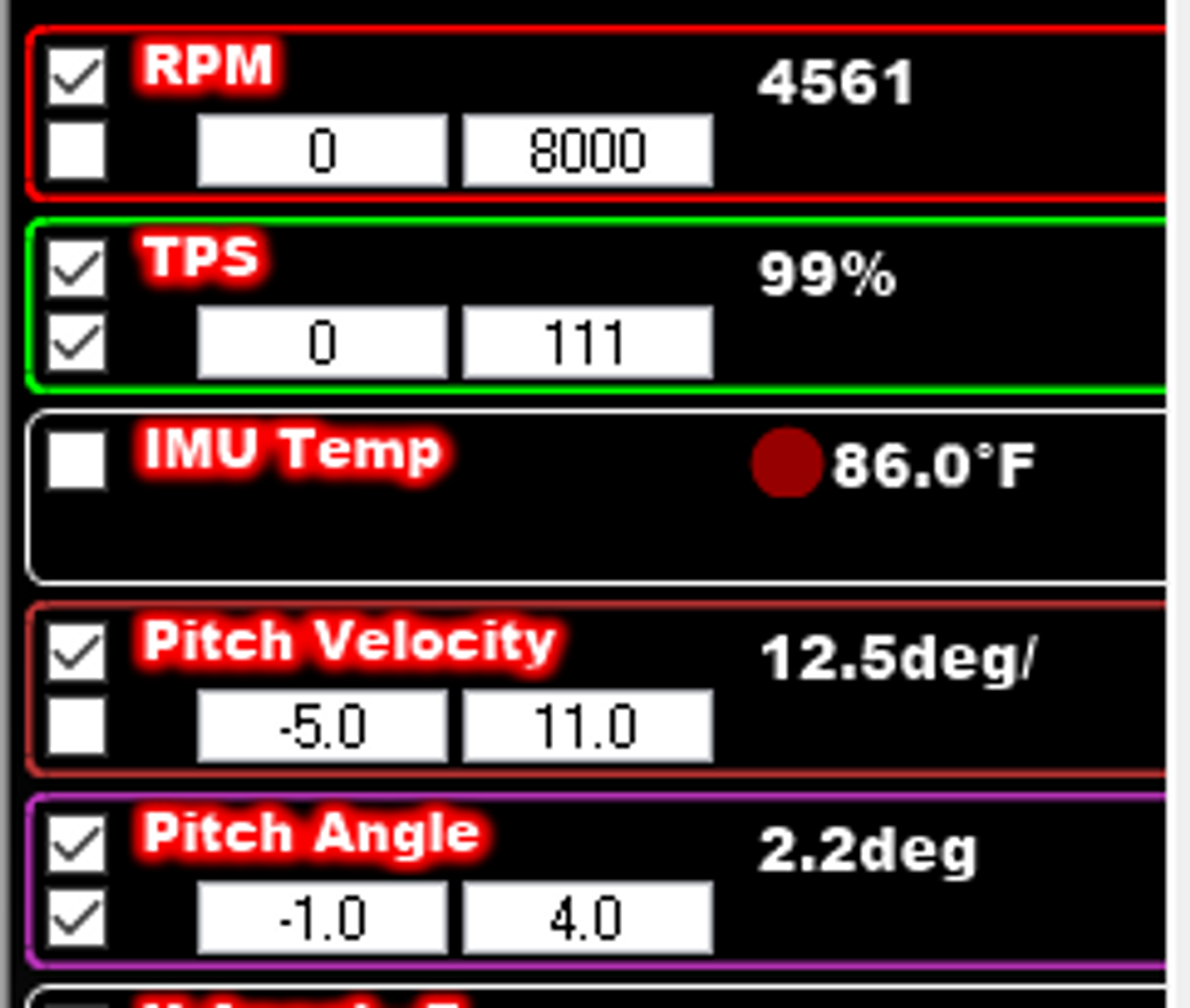

ACAS reports 2 CAN data channels to Holley: Chassis Angle, and Pitch Velocity. Chassis Angle is the Pitch or wheelie angle of the chassis, Pitch Velocity is the rate of change of Chassis Angle. Pitch Velocity has shown to be more useful than Chassis Angle alone for power management. Observing realtime velocity of your chassis is far more useful than the chassis angle itself.

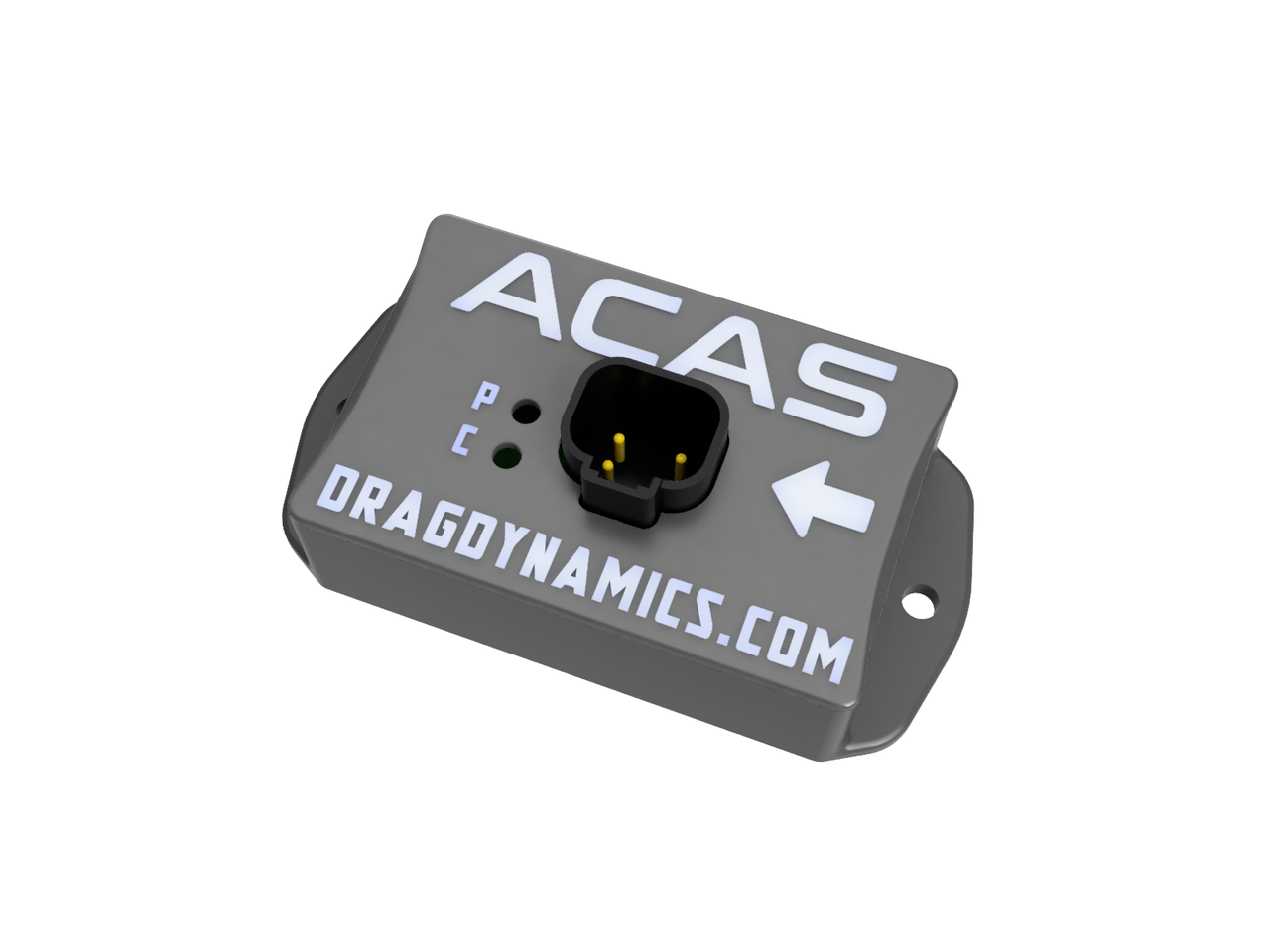

- ACAS lives in a watertight case, using a high quality Deutsch DTM 4-way connector.
- ACAS comes with a 4-ft flying lead harness with the mating Deutsch connector already installed.
- ACAS wiring requires only four simple connections.
- All software configuration is handled inside the Holley ECU.
- Each unit is hand assembled in the USA, tested and calibrated individually.
- Questions? Email us at support@dragdynamics.com
