Product Description

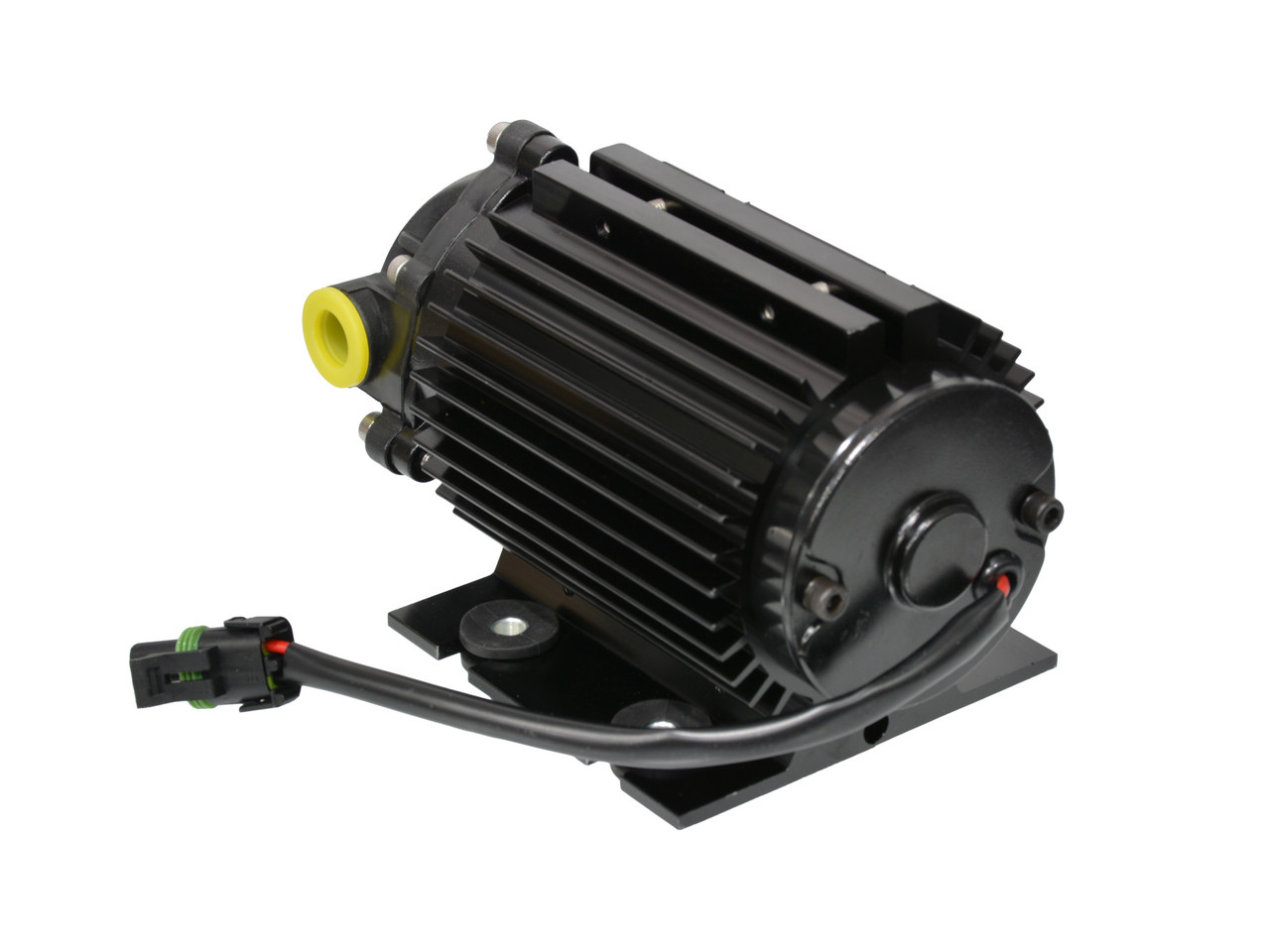

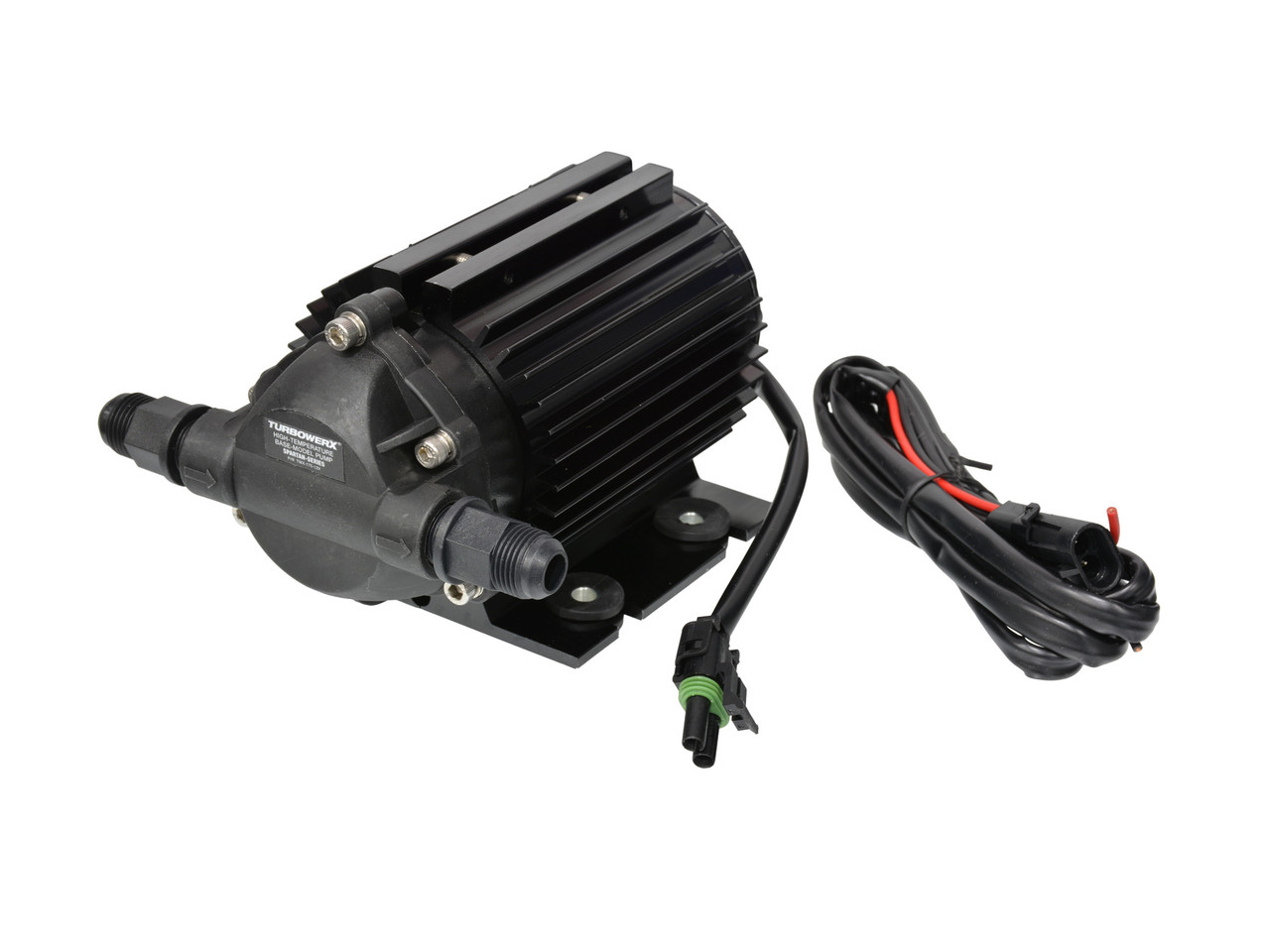

Turbowerx Base Model Turbo Oil Scavenge Pump TWX-175-12V
Proven Reliability.
For use with 12v up to 18v systems, this is a great option for both 12 and 16v racecar battery systems!
Proven, powerful, and quiet. Manufactured exclusively for TurboWerx, this custom engineered pump is designed to scavenge hot turbocharger drain oil from anywhere to anywhere in automotive applications. Time-tested, proven reliability over years, and with its 1.75GPM (105GPH) scavenging capacity, it is powerful enough to scavenge oil from two turbos. It will self-prime/draw from over 5 vertical feet and pump the oil as high as 20 vertical feet. The Exa-Pump®-inspired custom black anodized finned heatsink lowers operating temperature, further enhancing reliability.
Whether the application moves 1 oz of oil a minute or up to 1.75 gallons a minute, 'under-flow' applications are no problem. In fact, the TurboWerx pump may be run dry indefinitely. May be operated up to 60PSI pressure.
Same style/performance heatsink as Exa-Pump®!
This pump will fit inside a 7.25" x 4.0" x 4.0" box. It weighs less than 5 pounds and includes anti-vibration mounting hardware. It is specified to handle a maximum oil temperature of 300+F, and the power consumption at 12 volts is less than 3.5 amps. 24V version is less than 2 amps. Pump inlet and outlet fittings are standard 3/8" NPT. Also suitable for other fluids, such as rear-end, engine coolant, and water. Not compatible with ATF.
This pump is an ideal economical solution for most turbocharger scavenge applications. For higher performance and even greater reliability, see our exciting premium model "Exa-Pump™"
TurboWerx offers a limited warranty on the parts against defects in material and workmanship. Do not remove or replace ANY fasteners. Do not exceed 60PSI operating pressure. or 300F rated temperature, or >25% rated voltage (12V), else warranty voided.
